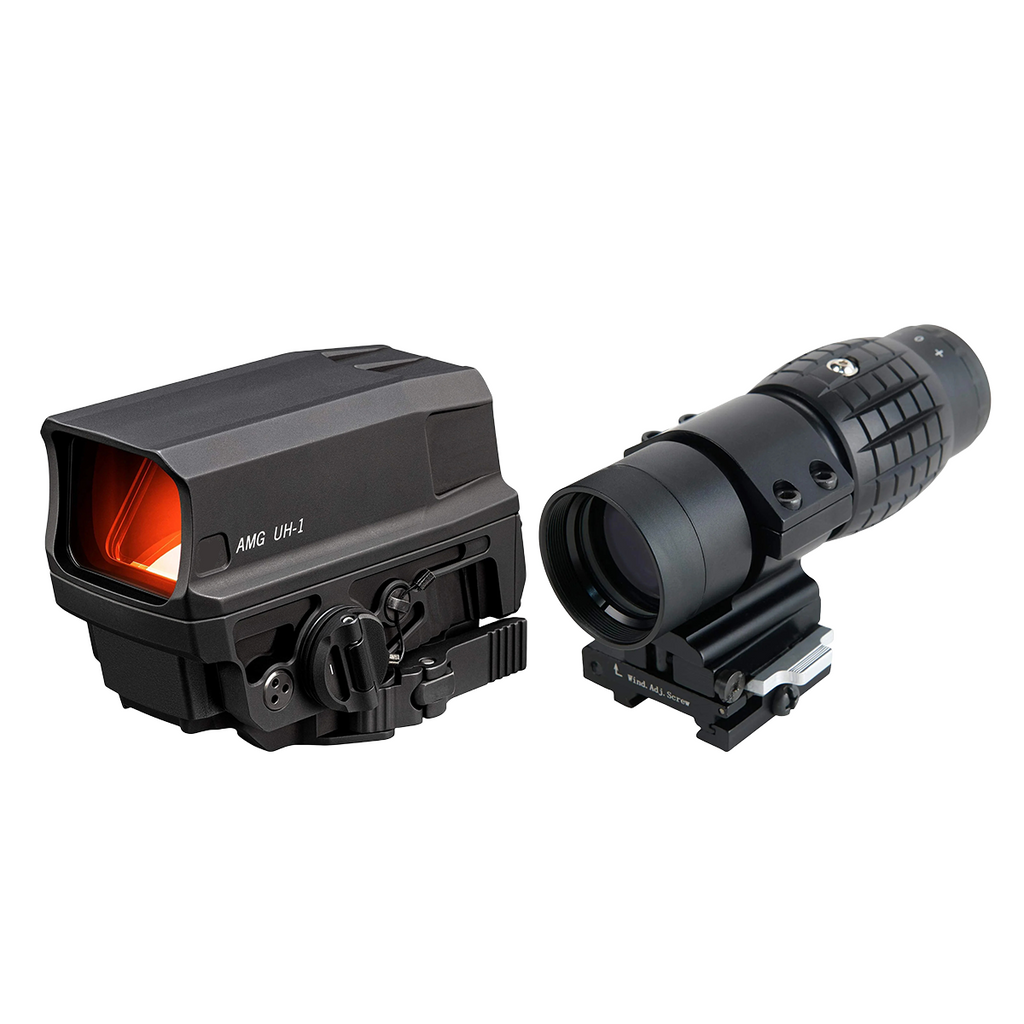

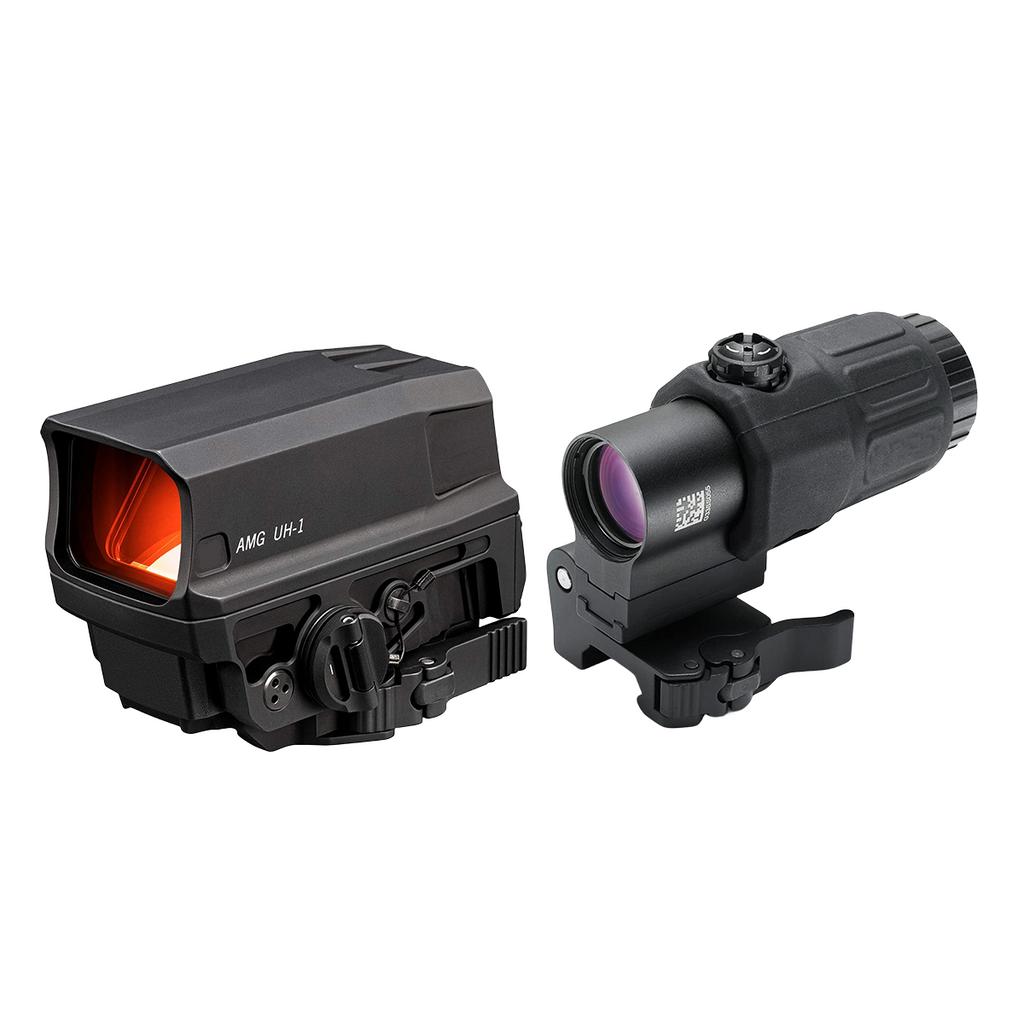

AIMTECHX™ AMG UH-1 GEN II HOLOGRAPHIC SIGHTS

AIMTECHX™ AMG UH-1 GEN II HOLOGRAPHIC SIGHTS
$249.98 USD $622.98 USD
Shipping calculated at checkout.
STYLE

OVERVIEW

The new AMG UH-1 Gen II picks up where the Gen I left off, now with a dedicated night-vision button providing quick access to 4 NV settings, with immediate recall to your last daylight setting. With the UH-1 Gen II, you get an improved sight picture through the enlarged viewing window, making target acquisition even faster, and easy battery changes with the tool-less battery cover, plus a lighter load at just 11 ounces.

DESCRIPTIONS

The incredible features of the UH-1®are matched only by its tough, tenacious performance.
Absolute zero image distortion and an impressive sight picture with unobstructed view ensure rapid, instinctual target acquisition. The UH-1® fully multi-coated windows and holographic elements are built to last and promote optimal light transmission. All sensitive components are protected in the sights base, increasing durability while eliminating the need for an obstructive secondary shroud.

FEATURES

  • The AMG UH-1 Gen II is an incredibly fast holographic display to conquer any situation, now with four NV compatible settings and a dedicated NV button.
  • With the UH-1 Gen II, you get an improved sight picture through the enlarged viewing window and easy battery changes with the toolless battery cover, plus a lighter load at just 11 ounces.
  • The lightning-quick EBR-CQB reticle with 15 illumination settings and our FHQ technology virtually eliminates stray light emissions for zero forward signature.
  • An integrated, quick-release mount makes the sight easy to install and puts the optic at lower 1/3 cowitness height on either Weaver or Picatinny rails. Rugged construction creates a shockproof sight.
  • Ultra-hard, scratch-resistantant ArmorTek coating protects exterior lenses from scratches, oil and dirt. O-ring seals help to provide waterproof and fogproof performance in the field.

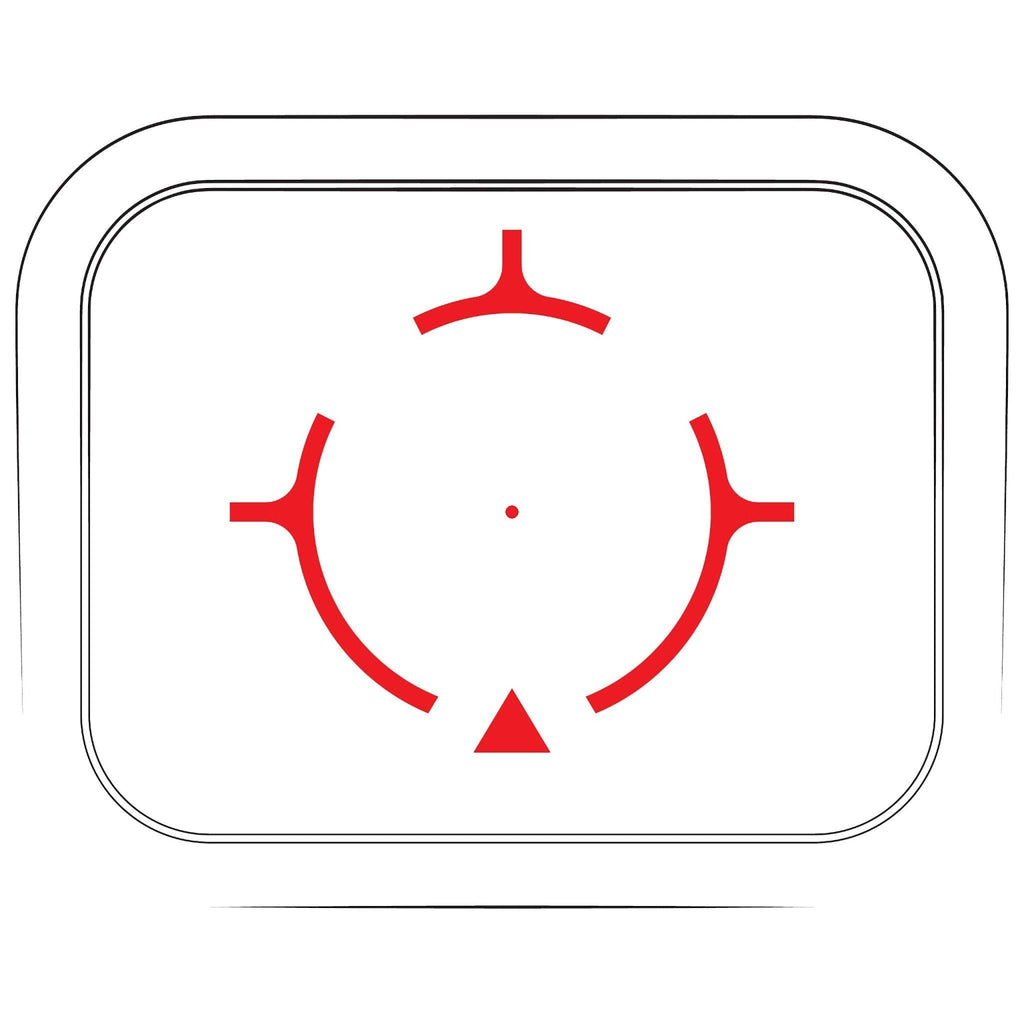

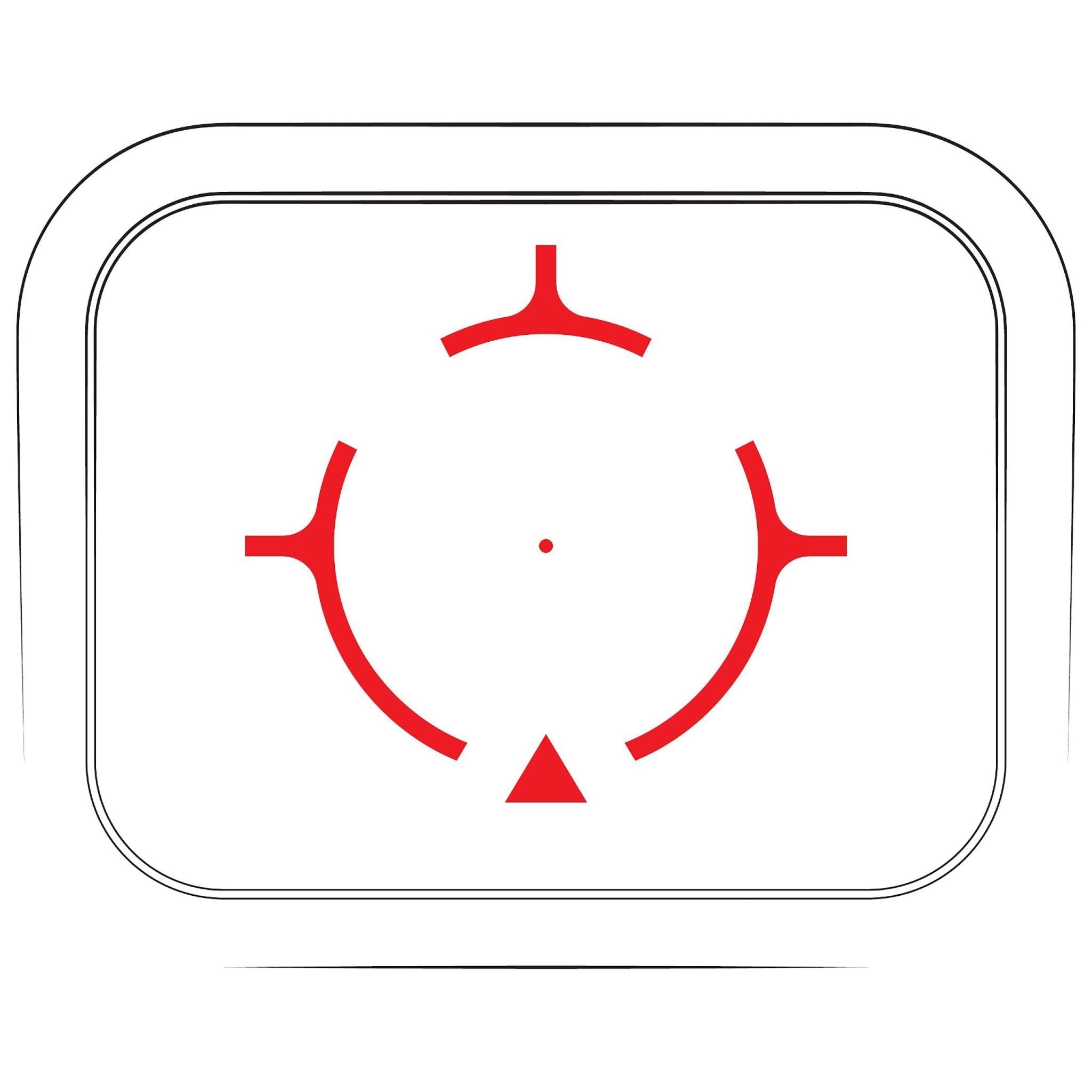

RETICLE

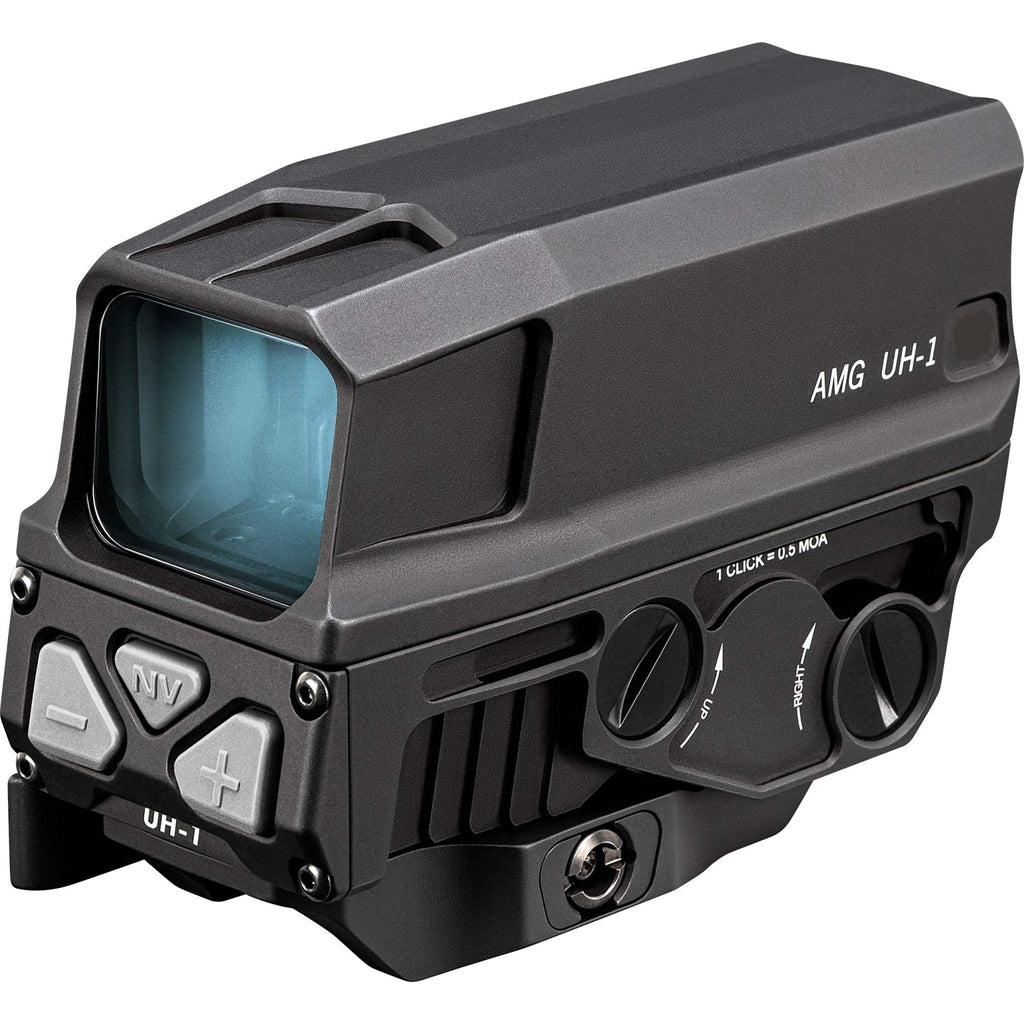

Night-Vision Button

To set the UH-1 to night-vision mode, press and hold the NV button. Adjust the illumination setting to your preferred brightness. Press and hold the NV button to return to the last daylight illumination setting. The UH-1 will return to the last NV setting used the next time you return to NV mode.

Note: When in night-vision mode, the reticle will only be visible with the use of a night-vision unit.

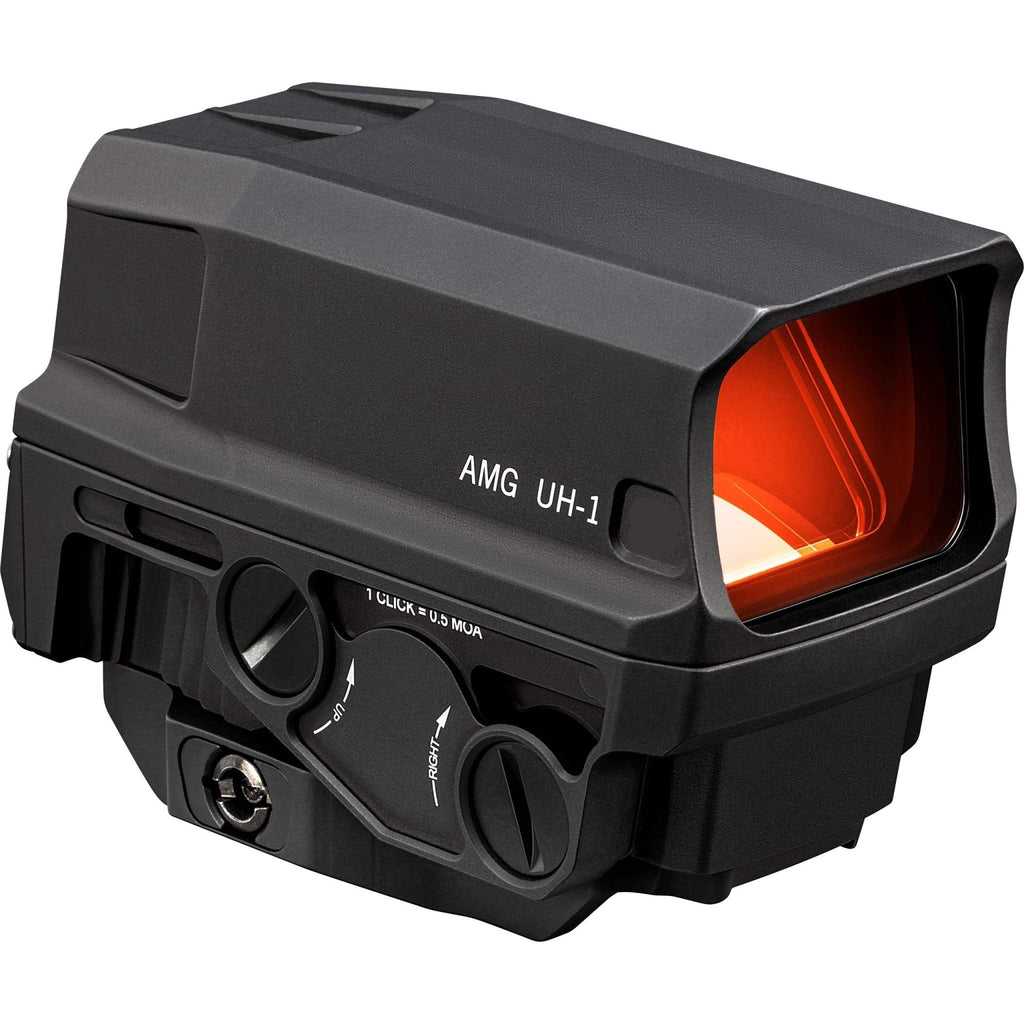

Windage & Elevation

Use a coin or flat-head item to turn the dials to adjust for point of aim. For both dials, one click will change the point of aim approximately ½ MOA when zeroing. One full rotation of either dial will change the point of aim approximately 16.5 MOA—approximately 8.25" at 50 yards or 16.5" at 100 yards when zeroing.

Note: When adjusting, you may encounter increased resistance. This means you’ve reached the end of the adjustment range and should not turn the dial more.

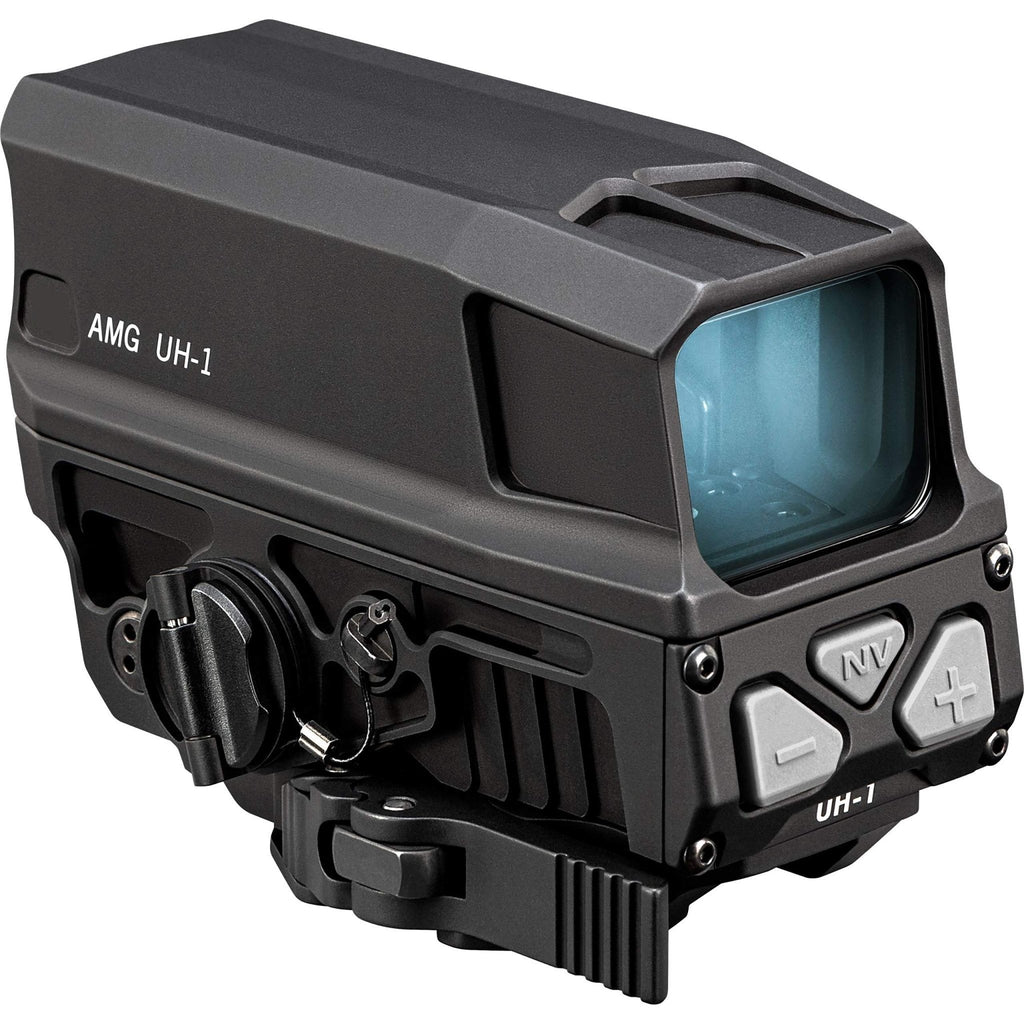

Battery

One CR123A battery powers the UH-1. To remove the tool-less battery cap, flip up the tab and turn the cap counterclockwise. Install the battery with the positve (+) end going into the unit. Replace the battery cap.

The UH-1 will automatically shut off after 14 hours if no button is pressed. The 14-hour Auto Shutoff feature can be disabled.

Integrated Quick-Release Mount

  • To open the mount, depress the lock button and swing the quick-release mount lever 90 degrees to the open position.
  • Position the UH-1 down onto the rail at desired location. Place the lever side onto the rail first, then rotate the unit so it is flush on the rail. Apply forward pressure on the unit. Move mount lever back to closed position.
  • Check lever closing tension. Lever should close with moderate pressure using thumb or finger. It should not require excess force to close. If lever won’t close, closes with excess force, or seems extremely easy to close with little or no tension, proceed to step 4.
  • To adjust the tension, move the lever back to the open position. Using a flat head screwdriver or similar device, turn the adjustment nut left or right to loosen or tighten. Make small adjustments of one or two clicks, then check lever closing tension. It may be necessary to repeat this process a few times until proper tension is achieved.

SPECIFICATIONS

Magnification 1x
Objective Lens Diameter 30 mm
Reticle EBR-CQB
Adjustment Graduation 1/2 MOA
Parallax Setting Parallax Free
Max Windage Adjustment 100 MOA
Max Elevation Adjustment 100 MOA
Dot Color Bright Red
Dot Size 1 MOA
Mount Type Weaver/Picatinny
Eye Relief Unlimited
Length 3.9 inches
Weight 11.6 oz

PACKAGE

  • 1* UH-1 Gen II ®Red Dot Sight Scope
  • 1* Waterproof Packing Box
