OVERVIEW

The DR 1x/4x Dual Role Optical Sight represents a revolution in optical sight design. The world’s first truly dual field of view combat optical sight, the DR switches instantly from a 4x magnified sight to a 1x CQB sight with the throw of a lever. Unlike zoom sights, the DR offers an optimized optical path and identical eye relief in both 1x and 4x modes.

Depending upon the situation, the user may adjust the sight to illuminate the crosshair or just a brilliant red dot in the center. In 1x mode, the DR has by far the largest field of view in the industry. In 4x mode the DR offers a generous field of view, long eye relief, and ELCAN’S legendary crystal clear image.

The DR 1x/4x offers the best single solution for both Medium Range and CQB engagements and is designed to withstand the rigors of modern professional use.

FEATURE

1x-4x rifle scope dual-field optical sight, just flip the lever,you can immediately switch from 4x magnification sight to 1x CQB sight. Unlike the zoom sight,it provides an optimized light path and the same eye distance in 4x and 1x modes.Depending on the situation, the user can adjust the light to illuminate the entire crosshair or only the bright red dot in the center.

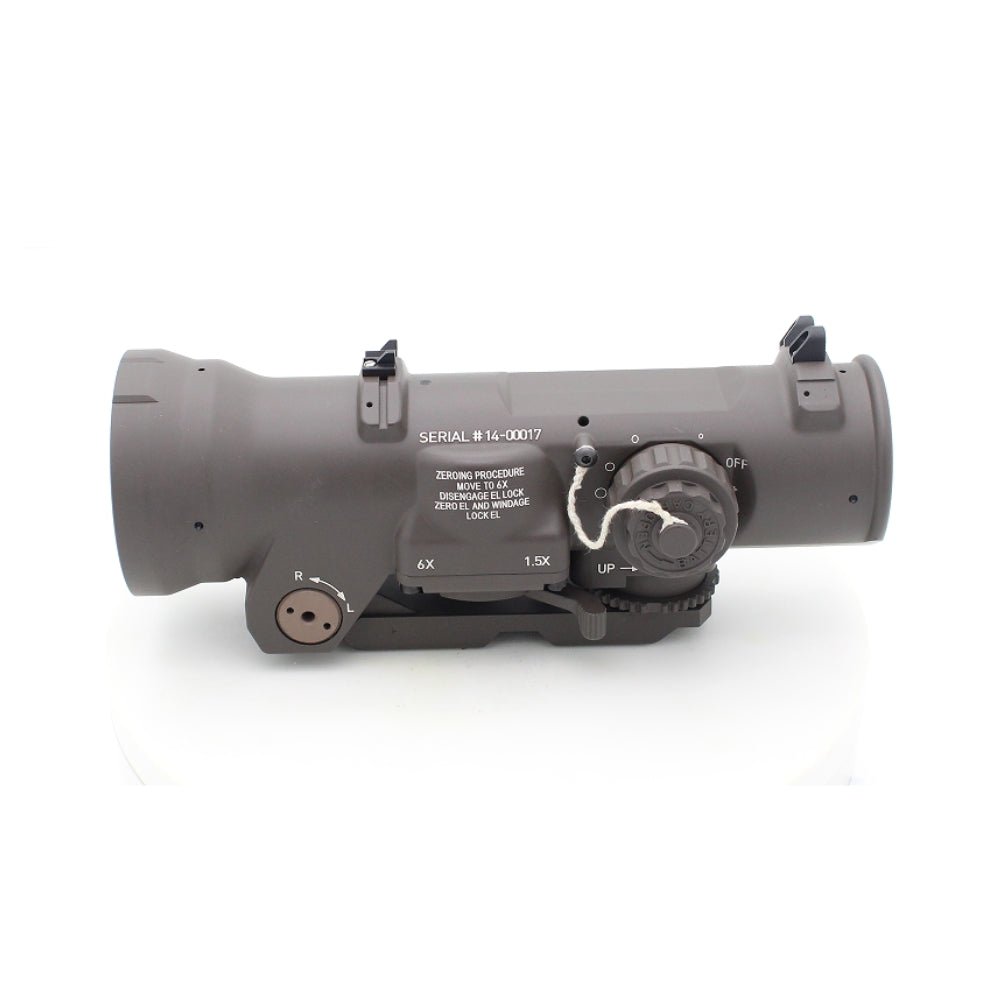

DR scope 1-4x32 Quick Zero Guide

• Set the magnification to 4X when zeroing!
• Azimuth zeroing uses the windage screw found at the front of the mount. Rotate the front left windage screw clockwise to move the point of impact to the left; counterclockwise to move to the right. Each click of the windage screw moves the point of impact by one-half MOA (approximately 1/2” at 100 yards). Figure 2-4
• Elevation zeroing uses the elevation dial the bottom rear of the mount. Unlock the zeroing lock (silver tab) by raising it up as far as it will go. Be sure that the lock pin at the bottom of the zeroing lock is fully disengaged from the elevation dial.
• Adjust the elevation dial as required. Each click of the elevation dial moves the point of impact by one-half MOA (approximately 1/2” at 100 yards). Turn the dial to the Right to Raise the point of impact, turn to the Left to Lower the point of impact.
• When satisfied with elevation zero, lower the zeroing lock (silver tab) fully to lock the elevation zero at its current setting.

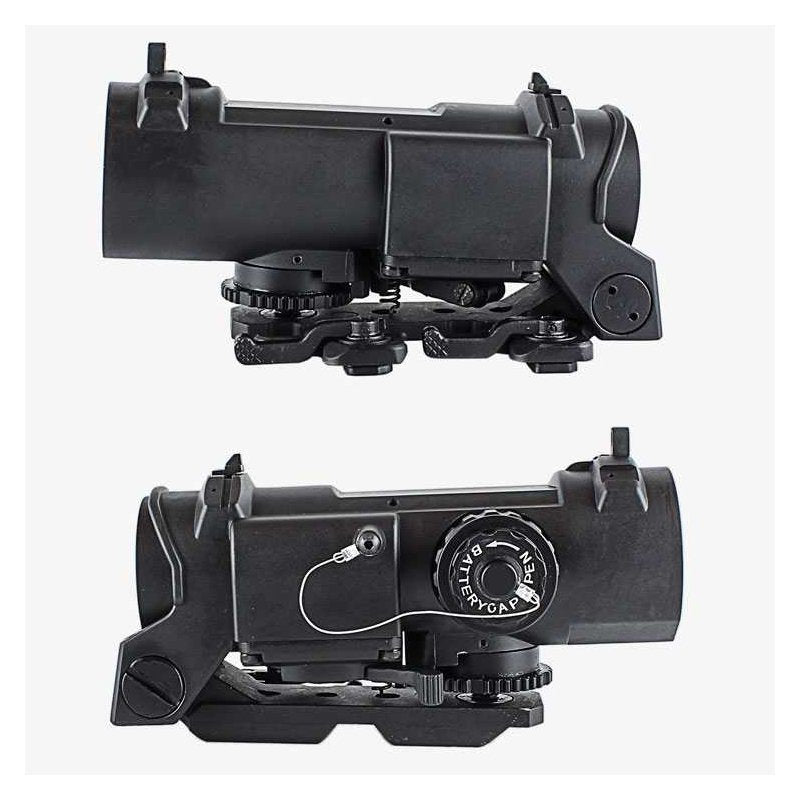

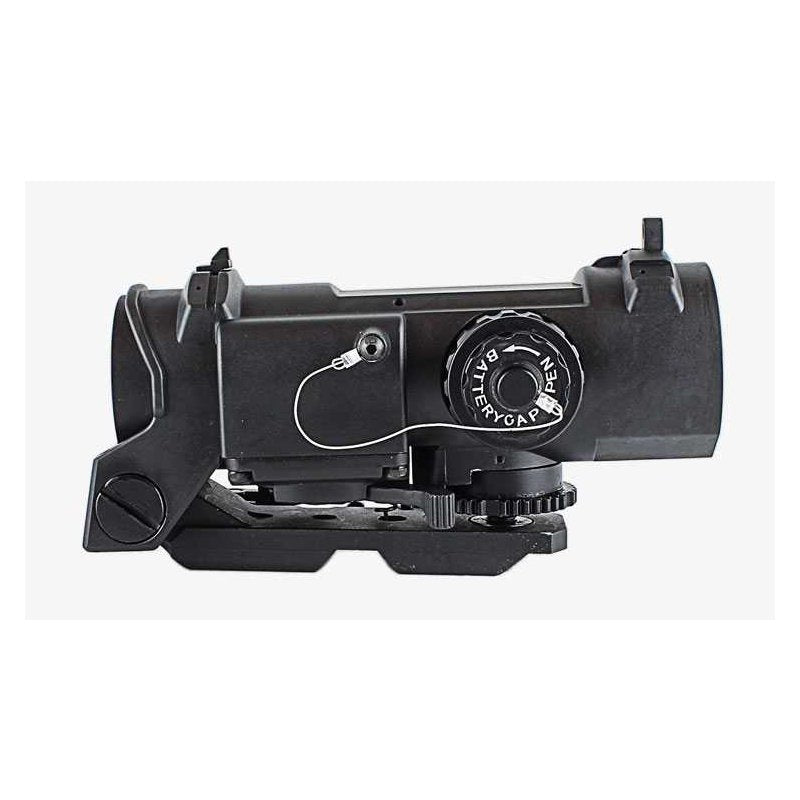

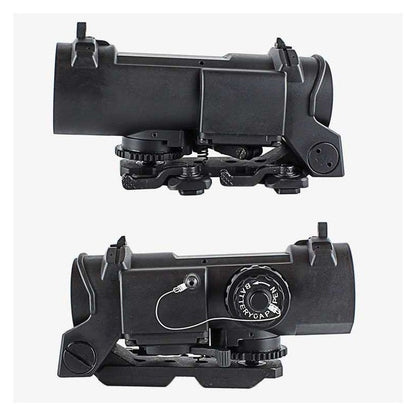

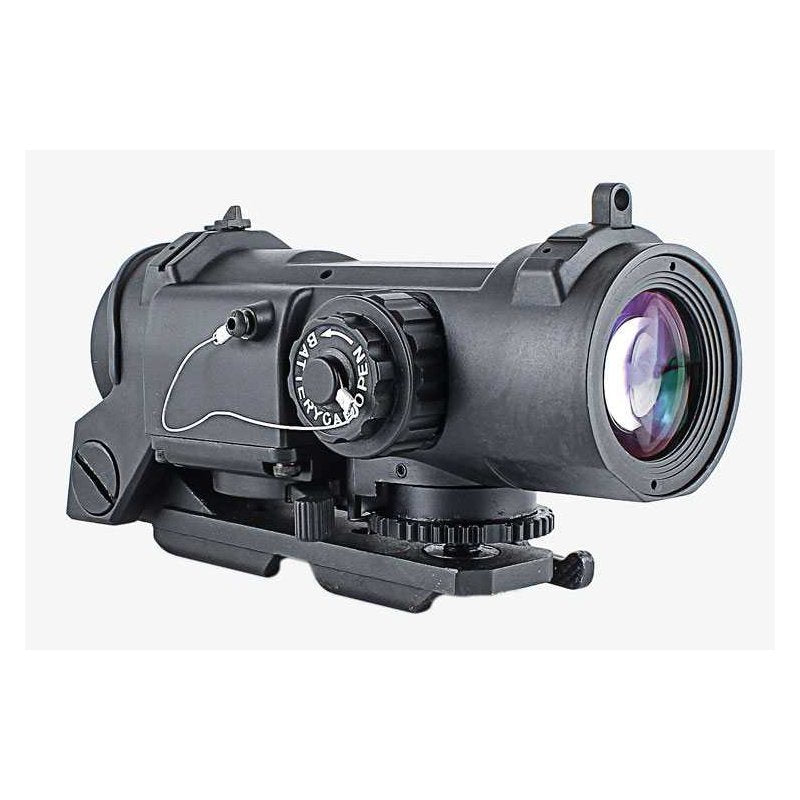

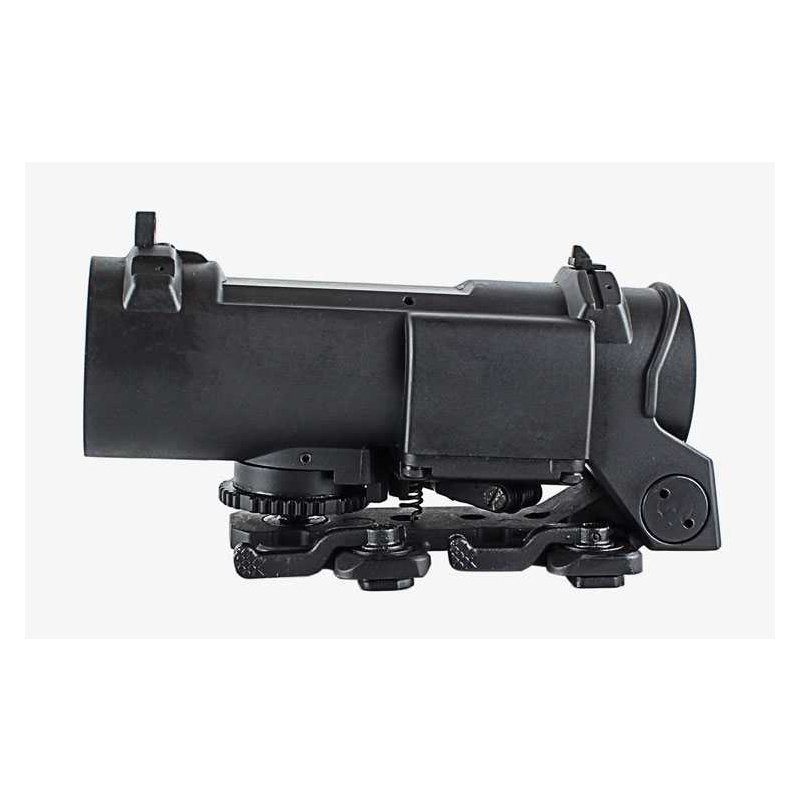

DR SCOPE 4X32 DETAIL

• Finish:Black oxide;
• Power x Obj.Lens(mm):4x 32;
• Brightness setting:Red:0-11;
• Lens Coating:Fully Multi Coated;
• Eye relief:55mm;
• Field of view(Angle):7°;
• Exit pupil(mm):8mm;
• Accessories:cleaning cloth,CR1620 battery;
• N.w(g ):595g;
• Shock Resistant:Hold recoil from caliber .223/5.56;
• Waterproof:No;
• Fogproof:No;

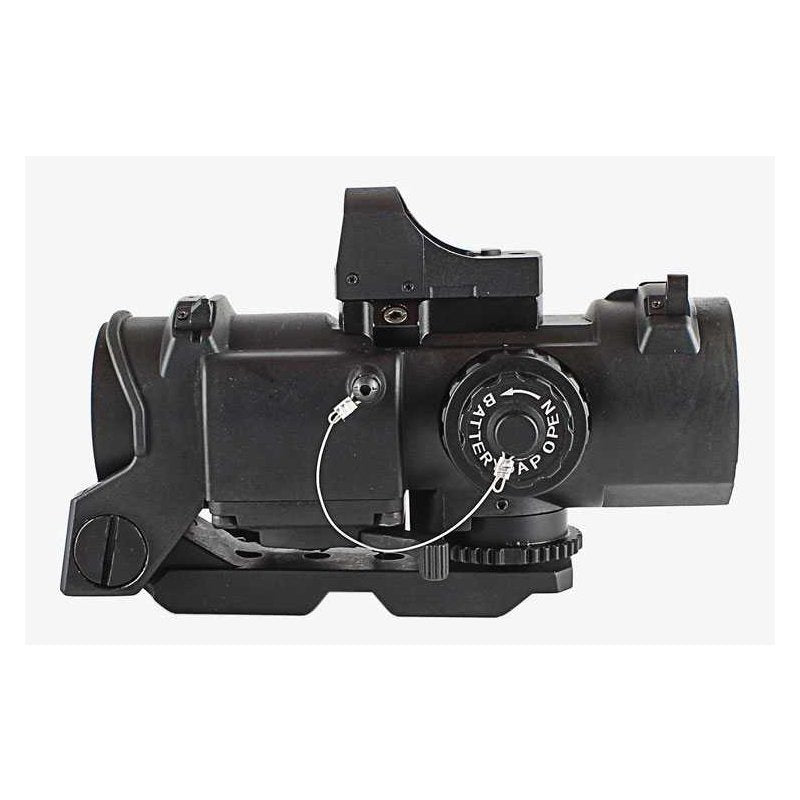

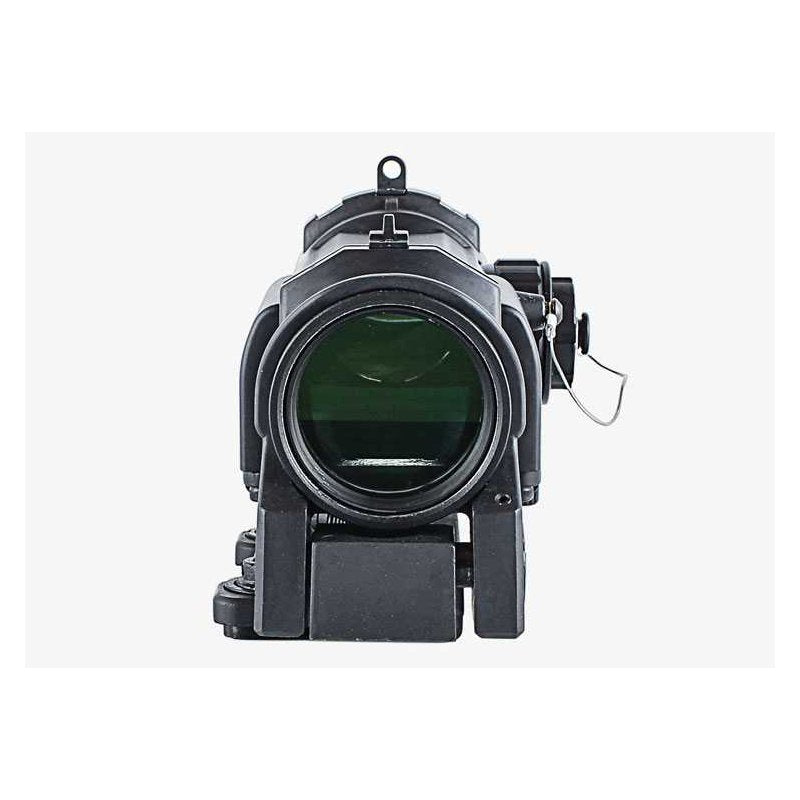

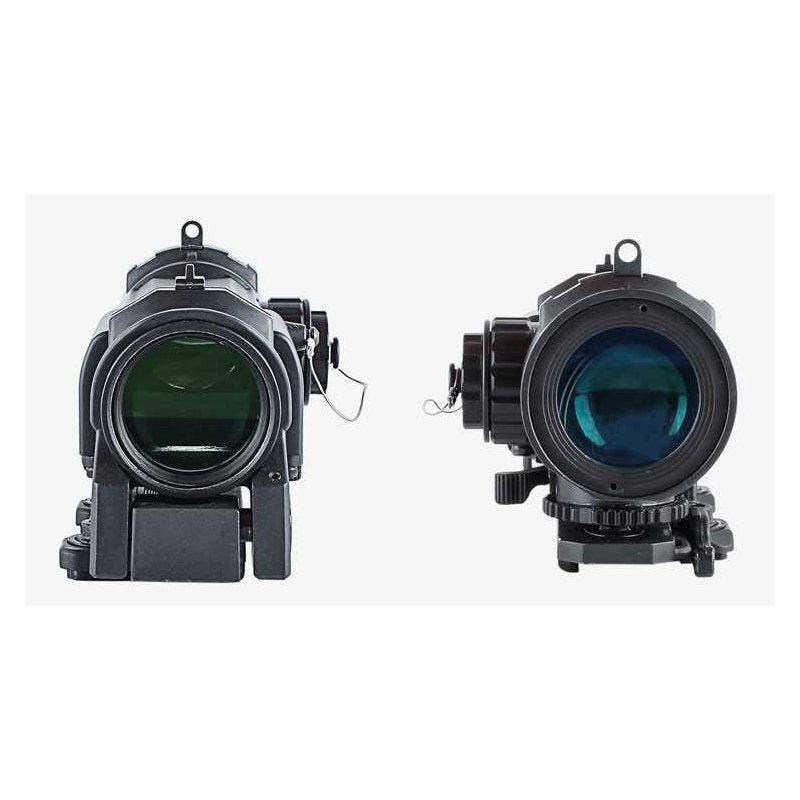

DR SCOPE 1-4X32 DETAIL

• Finish:Black oxide;
• Power x Obj.Lens(mm):1x or 4x 32;
• Brightness setting:Red:0-11;
• Lens Coating:Fully Multi Coated;
• Eye relief:55-62mm;
• Field of view(Angle):7-26.5°;
• Exit pupil(mm):8-6.5mm;
• Accessories:cleaning cloth,CR1620 battery;
• N.w(g ):620g;
• Shock Resistant:Hold recoil from caliber .223/5.56;
• Waterproof:No;
• Fogproof:No;

4X32 SPECIFICATION

• Compact, heavy duty prism scope
• Features a glass prism optical system rather a refracting lens system like traditional scopes, allowing for better optical quality in a much smaller package

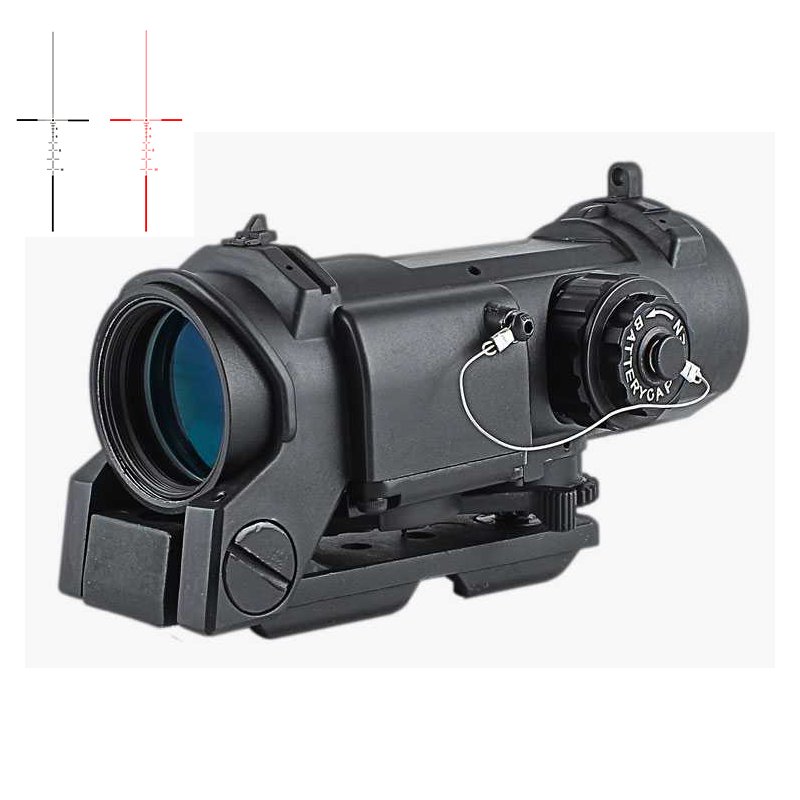

• Crystal clear optics with a black reticle and illumination in red with multiple brightness levels

1-4X32 SPECIFICATION

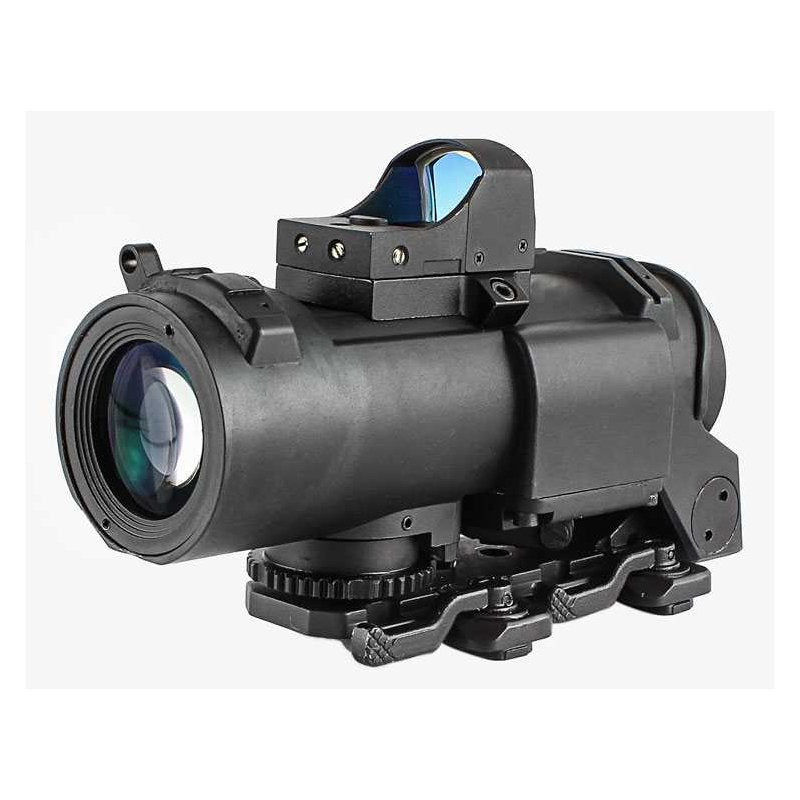

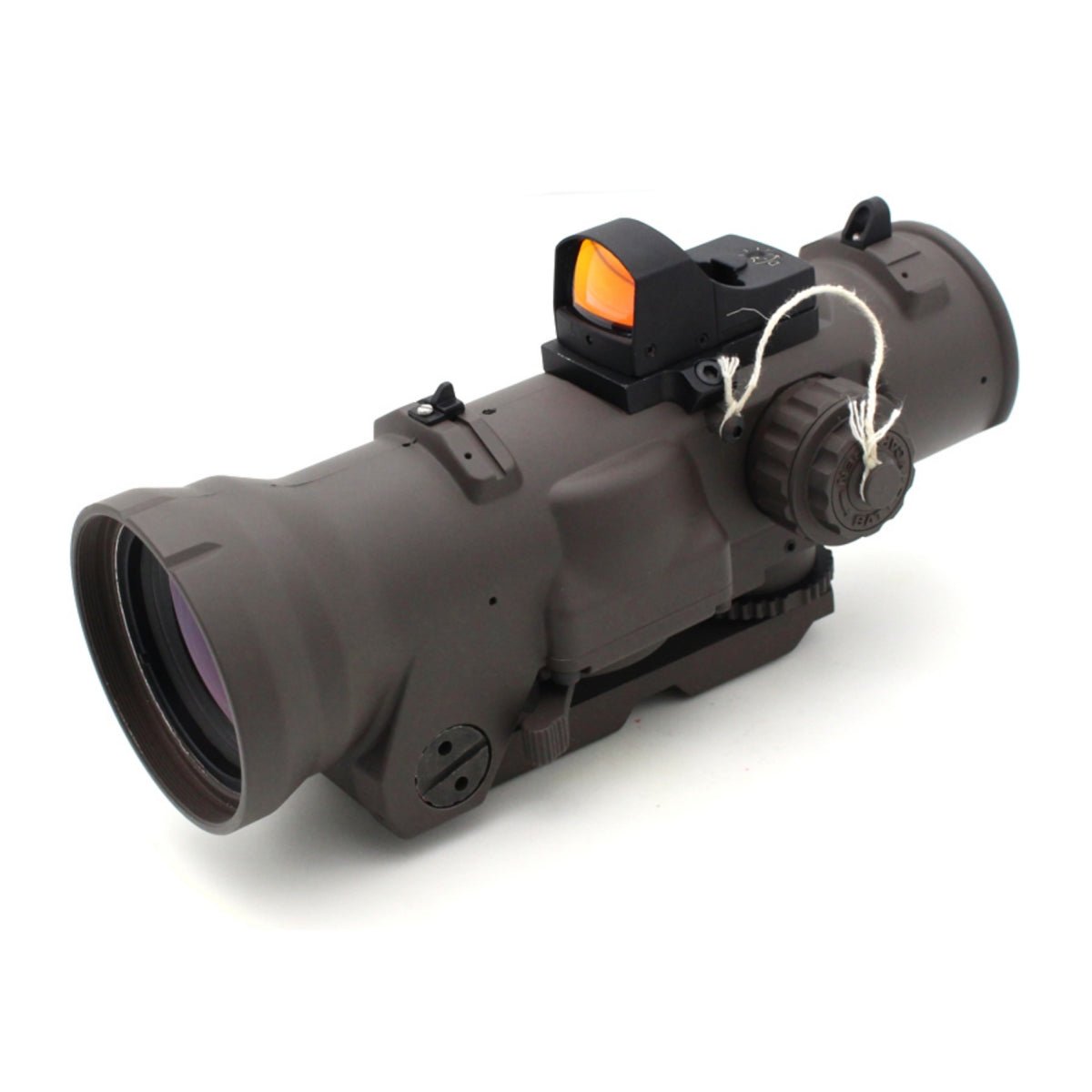

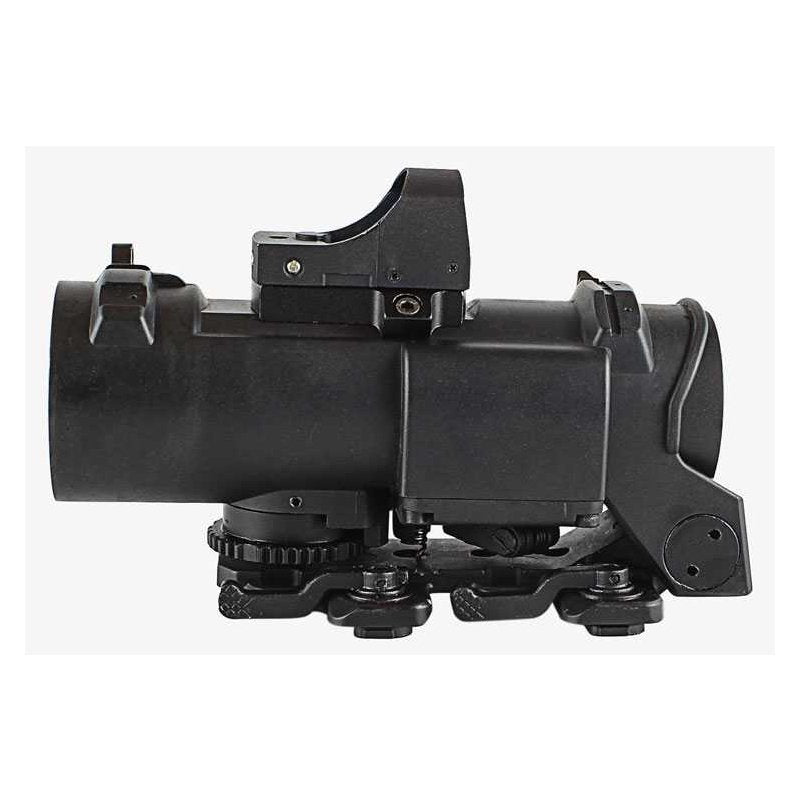

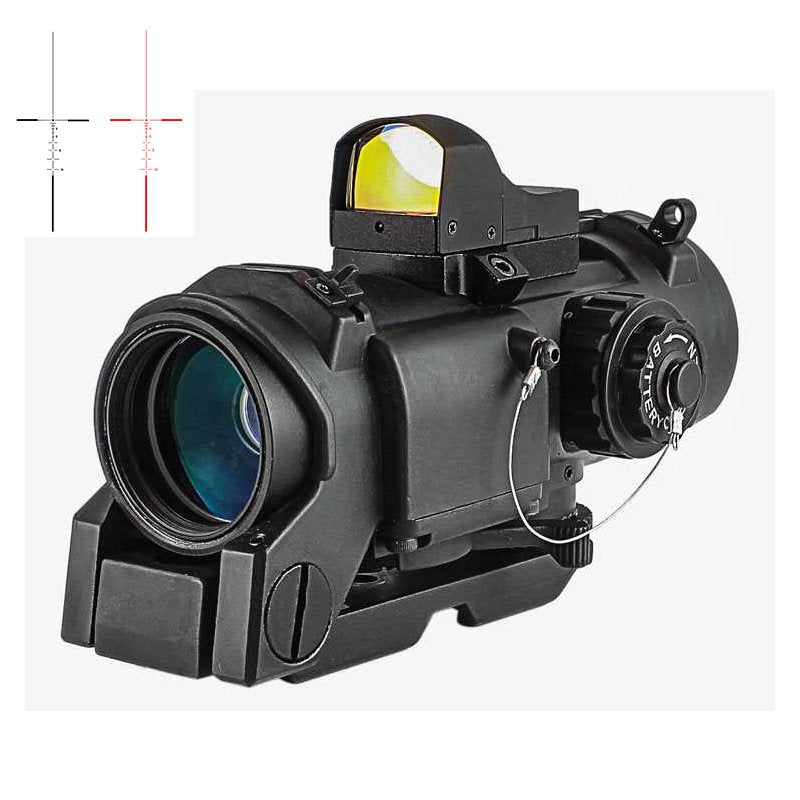

• Prism scope with red dot reflex sight on Top
• Compact scope features 4x zoom system with a true 1x that is perfect for close-quarters engagements.

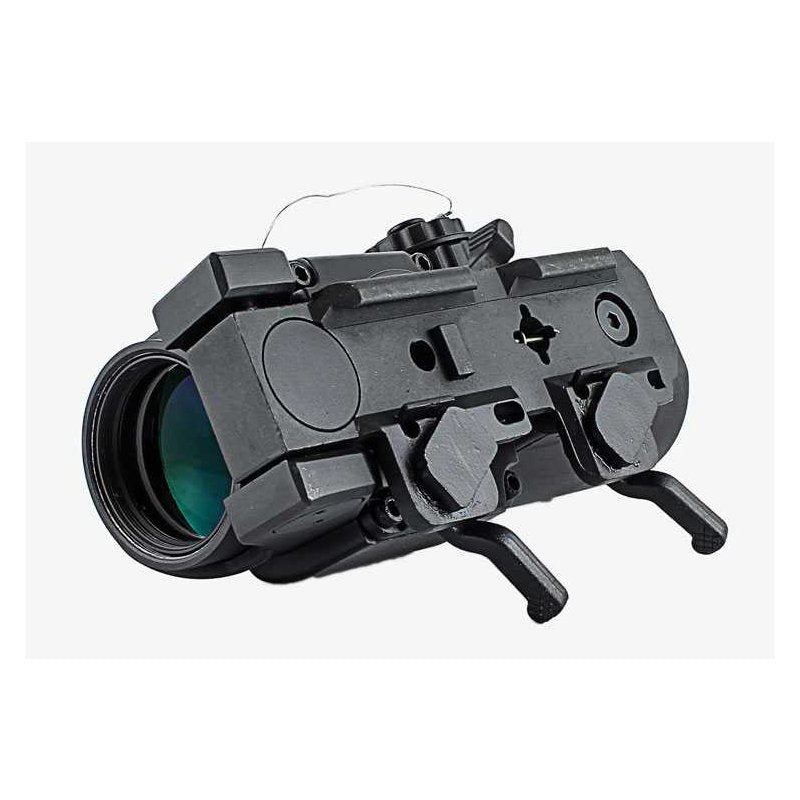

• Quick detach mount adapts to any standard Picatinny rail
• Constructed from a solid block of aircraft-grade aluminum. Shockproof and waterproof.
• Completely sealed with nitrogen filled
