SPARC RED DOT SIGHT GEN II-2 MOA DOT

SPARC RED DOT SIGHT GEN II-2 MOA DOT
$129.98 USD
Shipping calculated at checkout.

OVERVIEW

Ready to handle any environment, the SPARC features tough construction with a compact and lightweight form-factor. The 2 MOA dot is as easy as point and shoot—it’s quick to acquire in close-quarters scenarios, but fine enough to promote pin-point accuracy at extended ranges. A unique, integrated base is hassle-free for some rifle platforms. For excellent, reliable performance and loads of user-friendly features, look no further than the SPARC.

INCLUDED

  • Rubber Cover with Flip-Up Lens Caps
  • AAA battery
  • T10 Torx wrench
  • Multi-height mount system

Daylight Bright Red Dot Reticle

The daylight bright 2 MOA dot is fast and easy to use. Choose among ten variable illumination settings—the lowest two settings are night-vision compatible.

The key thing to remember when shooting with the SPARC Red Dot is to keep both of your eyes open! Shooting with both eyes open allows you to take full advantage of your peripheral vision to get on target very quickly. Eye placement is not critical.

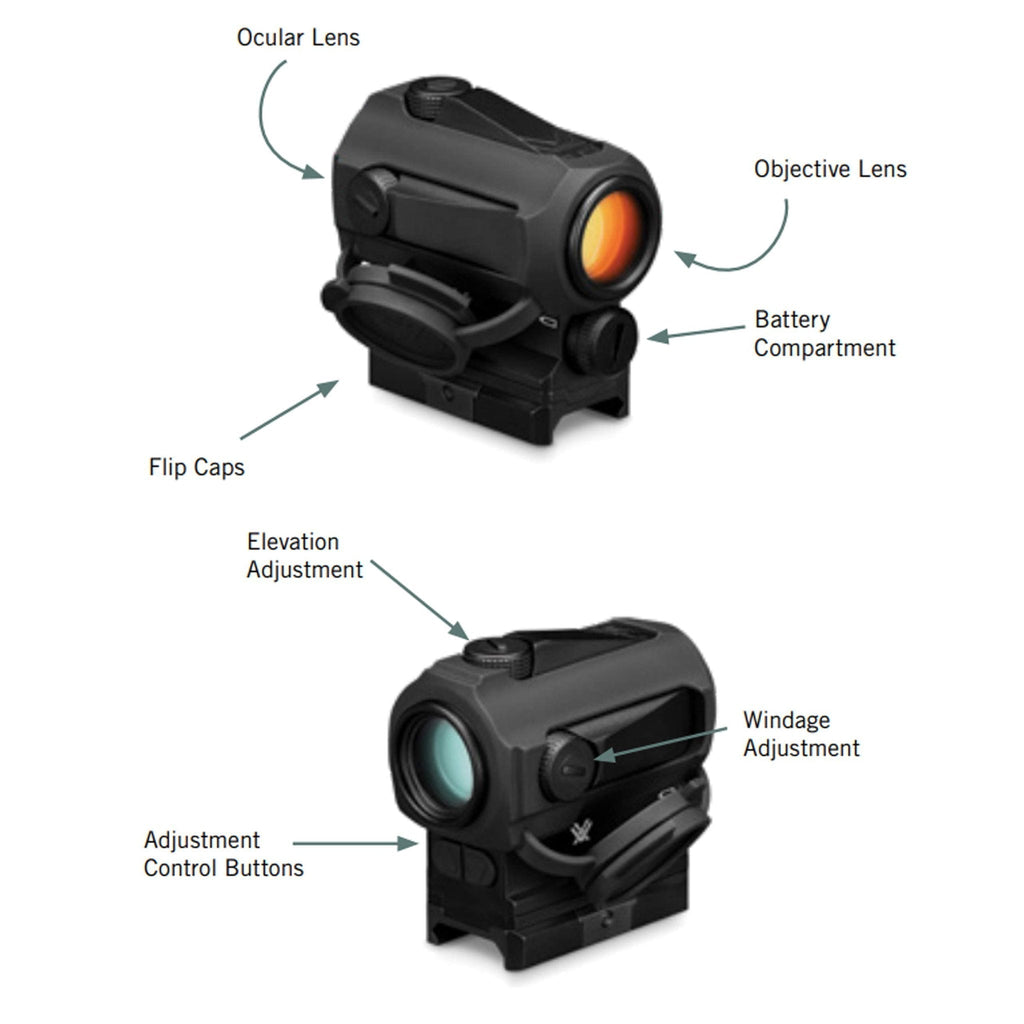

Windage and Elevation Adjustments

The SPARC red dot incorporates elevation and windage dials with audible clicks. Each small click will move the point-of-impact one Minute of Angle (MOA). 1 MOA will closely correspond to one inch at 100 yards, 1/2 inch at 50 yards, 1/4 inch at 25 yards, etc.

Elevation Adjustment

Remove the turret cap and turn the inner screw counter-clockwise to adjust the bullet’s point-of-impact up; turn the inner screw clockwise to adjust bullet’s point-of-impact down.

Windage Adjustment

Remove the turret cap and turn the inner screw counter-clockwise to adjust the bullet’s point-of-impact to the right; turn the inner screw clockwise to adjust windage bullet’s point-of-impact to the left.

Mounting the SPARC Red Dot

The SPARC Red Dot can be mounted at two heights, lower 1/3 co-witness and absolute co-witness. To mount it at lower 1/3, mount the sight as received. The optic center will be 40mm above the base surface. To mount for absolute co-witness you can remove the 3mm base shim. The optic center at absolute co-witness will be 37mm above the base surface. To change the mount height, loosen and remove the four base screws and remove the base clamp along with the 3mm shim. Reinstall the base clamp with the four shorter screws supplied with your Red Dot.

SPECIFICATIONS



Sparc AR II 1x 2 MOA Red Dot Sight

  • Marked variants are available exclusively from OpticsPlanet
  • Fully Multi-Coated
  • Unlimited Eye Relief
  • Parallax Free
  • Single-Piece Chassis
  • Waterproof
  • Shockproof
  • Hard Anondized Finish
  • Nitrogen Purged
  • 12 Illumiantion settings
